Paraloft

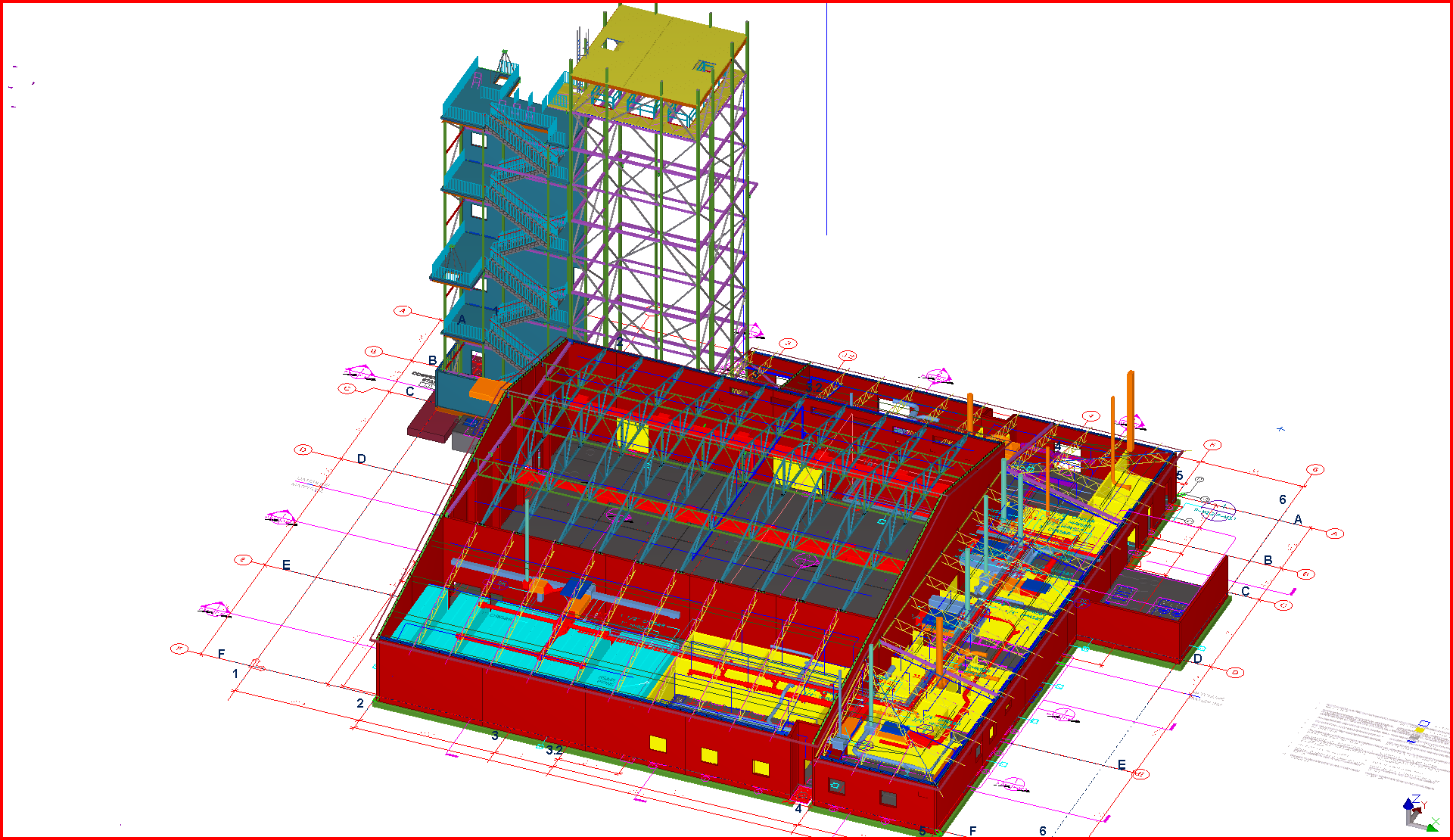

The 18,700 SF Paraloft building is a special purpose building for training Marine Parachute jumping, repelling, and jump related tasks. As such this building contains a large number of mechanical blowers forcing air up a 100 foot tower. The coordination challenge in this building was relocating the fire and HVAC so they would fit into the structure and not collide with each other in the confined space.

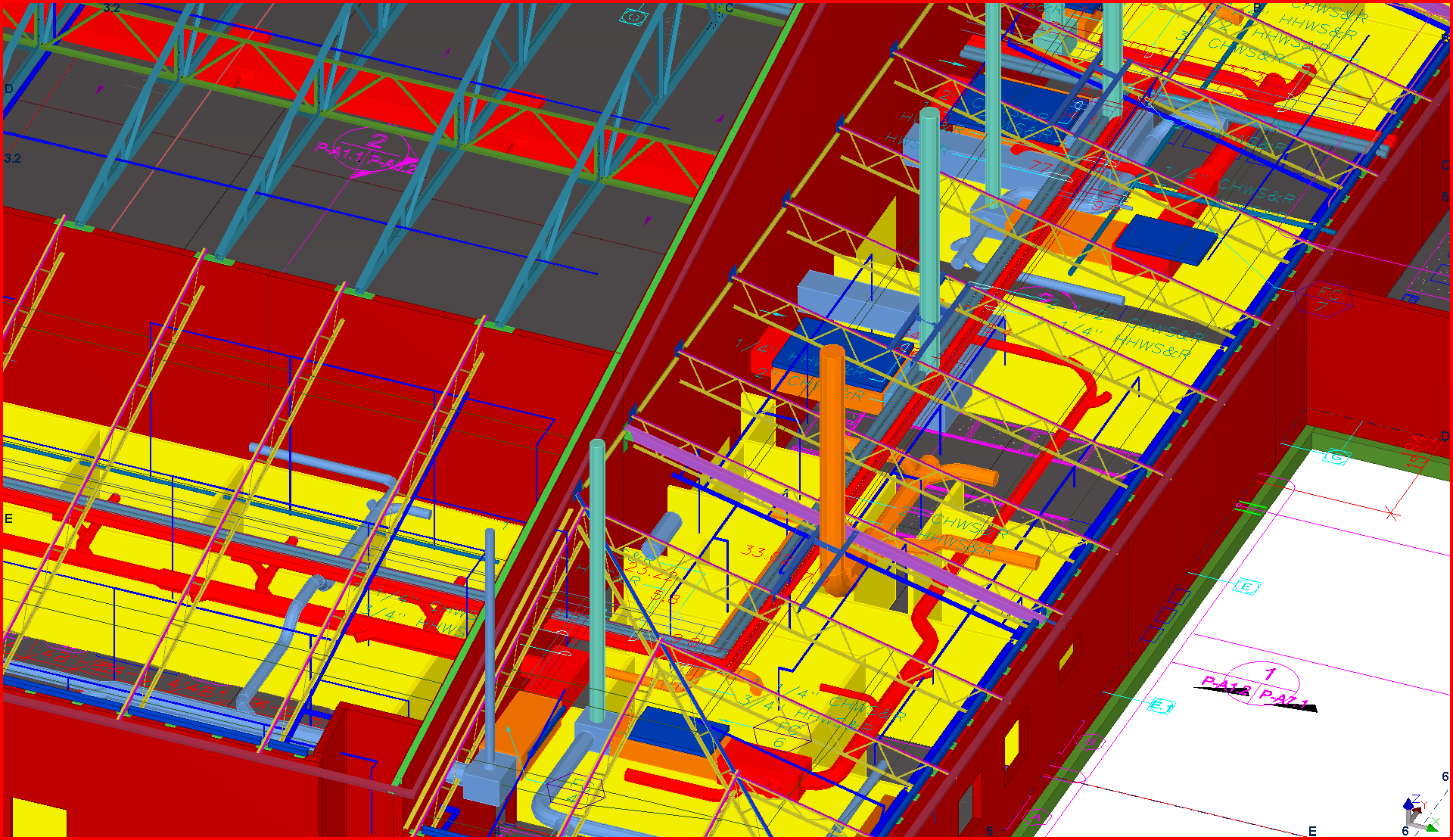

Level of detail - note the use of 2D

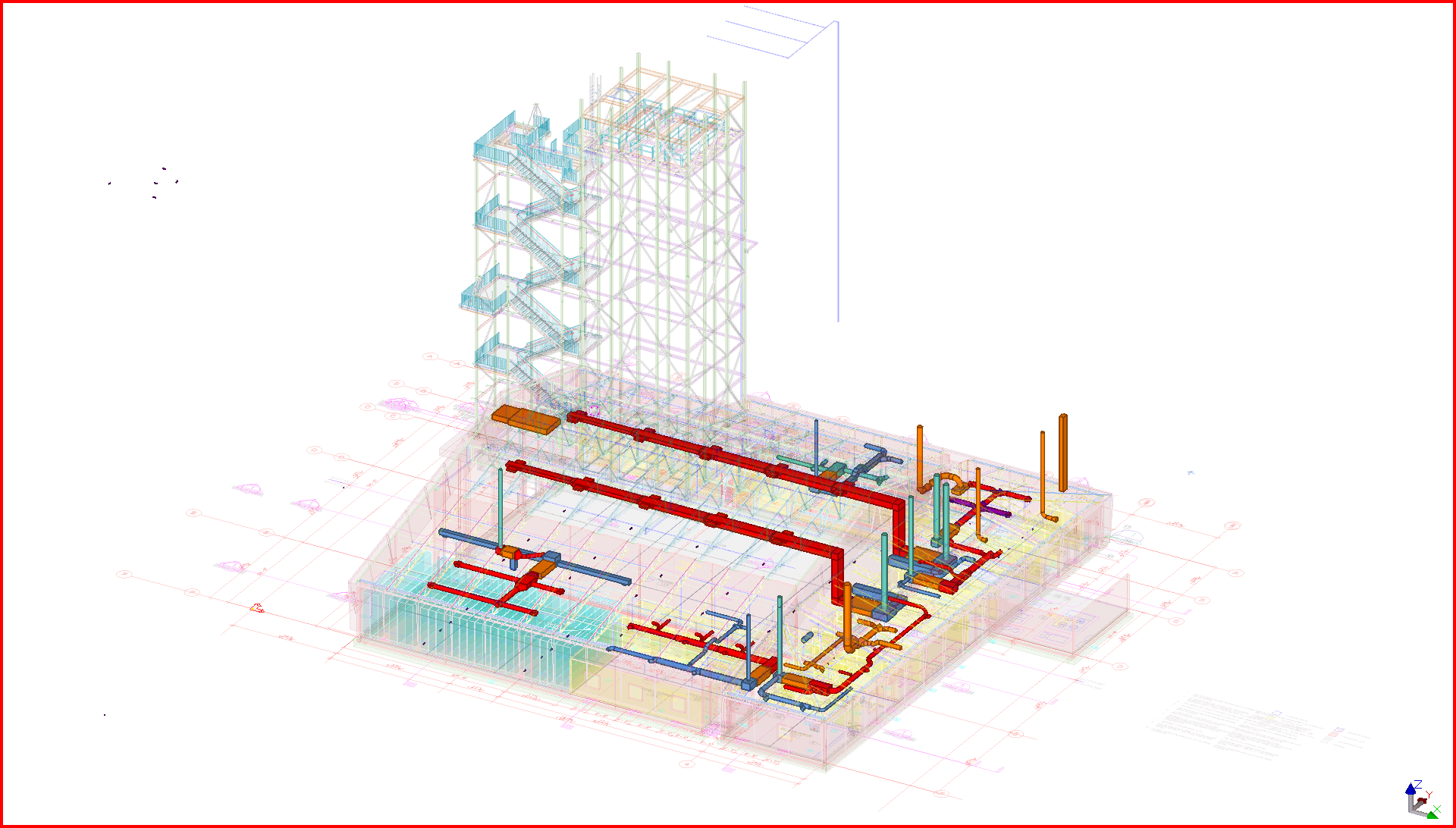

HVAC with other elements transparent
