VA LongBeach Retrofit

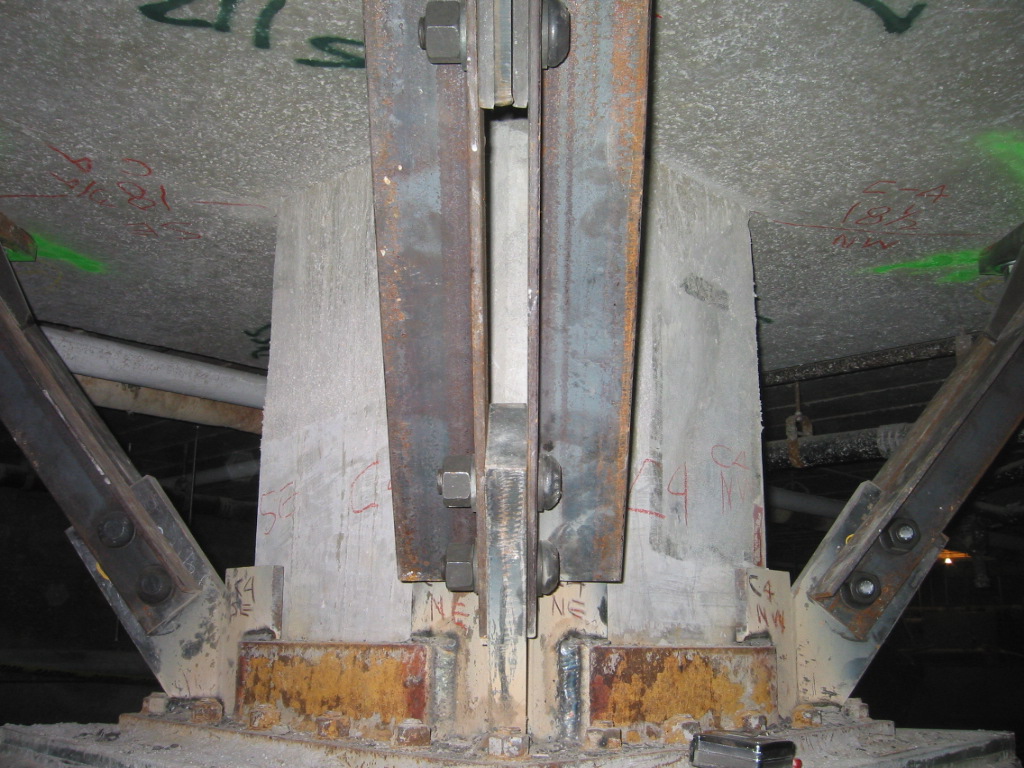

New Brace

This column & Isolator just needed a new brace

Home View larger version

Retrofit Brace

This column required retrofit. The majority of the project was retrofit.

Home View larger version

Retrofit Brace

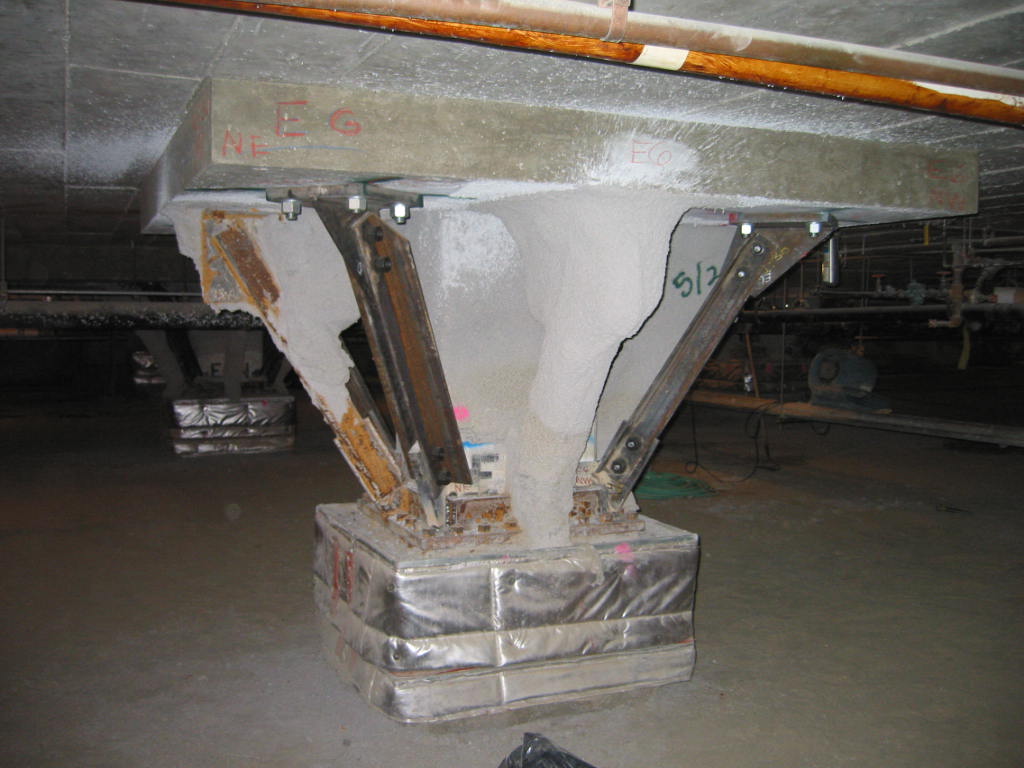

This column required retrofit. Note the monocoat was removed to examine the old brace.

Home View larger version

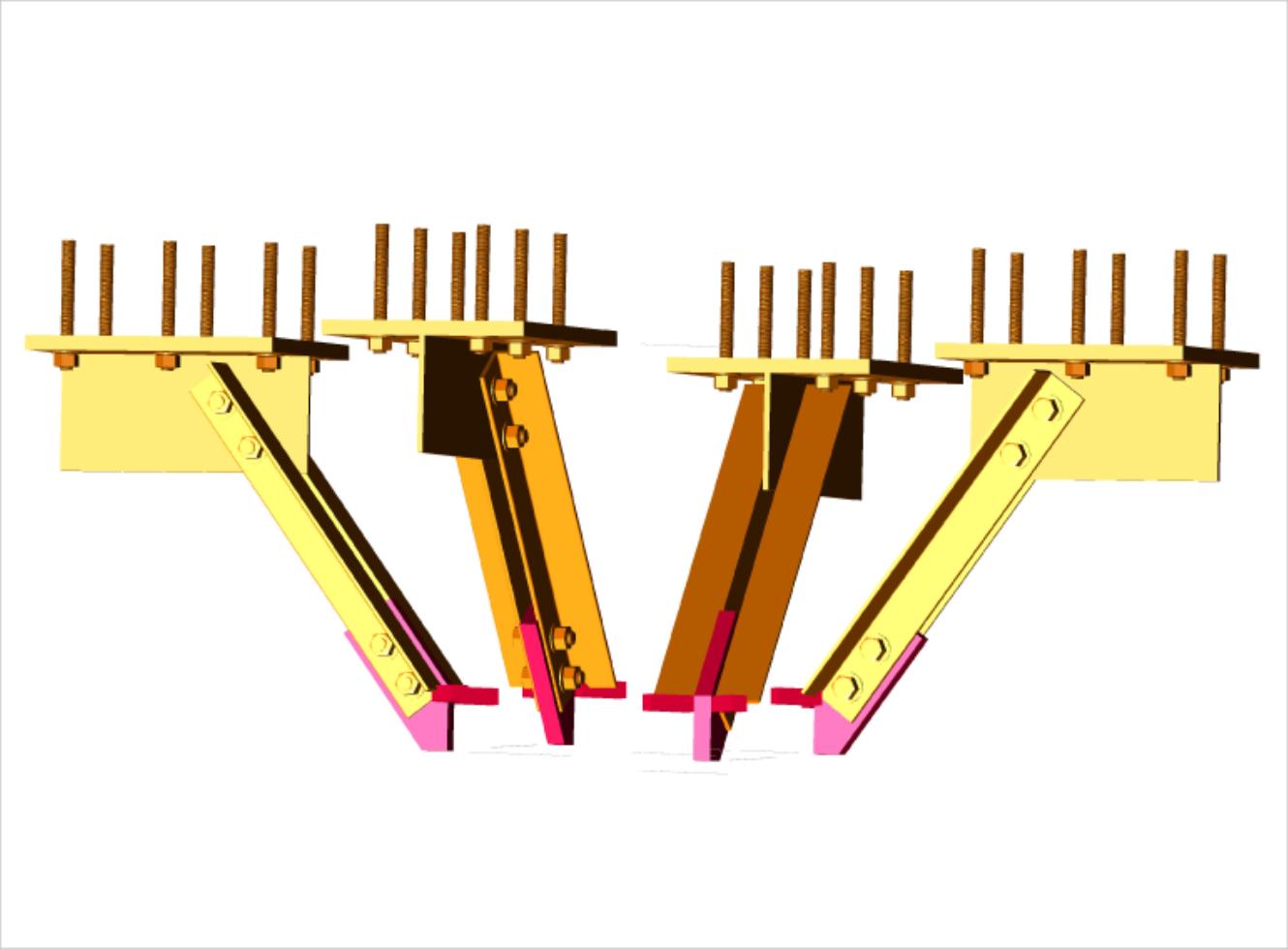

New Brace Model

Design/Engineering model of new brace

Home View larger version

Failed pull test

Epoxy voids caused pull test failures.

Home View larger version

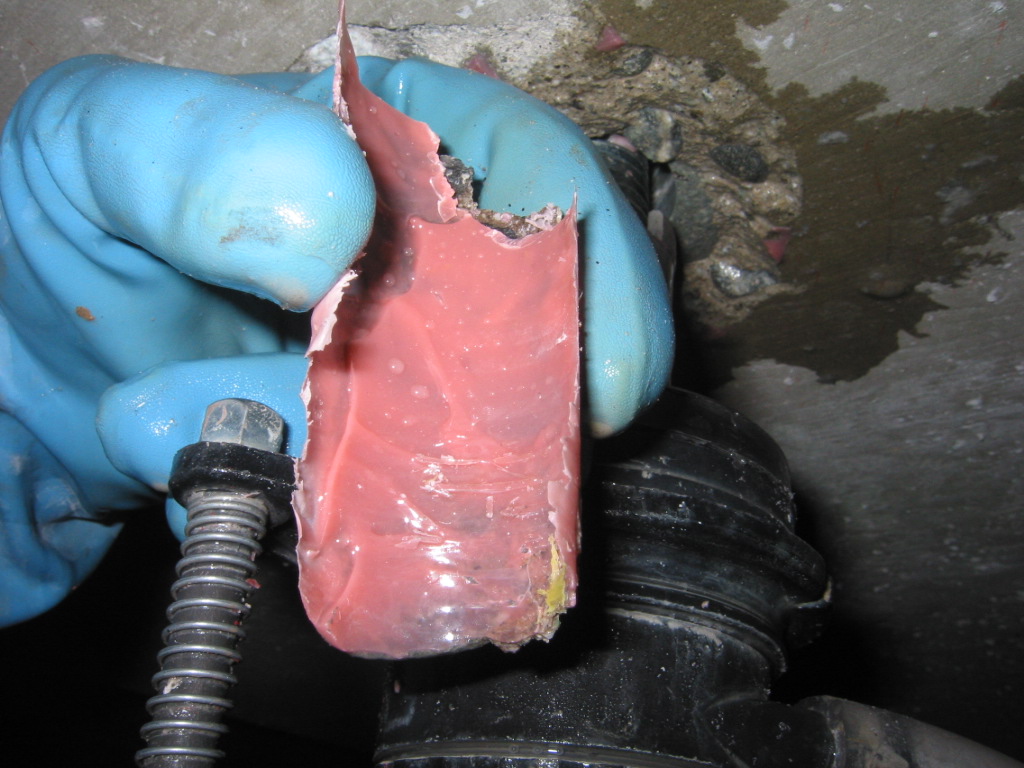

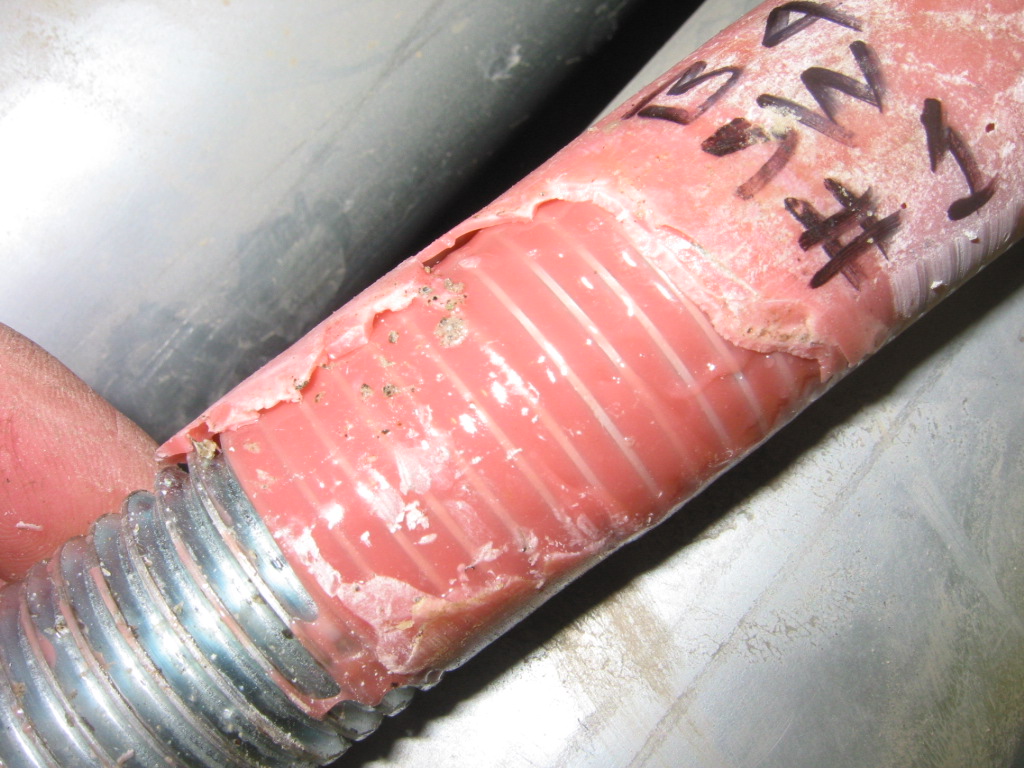

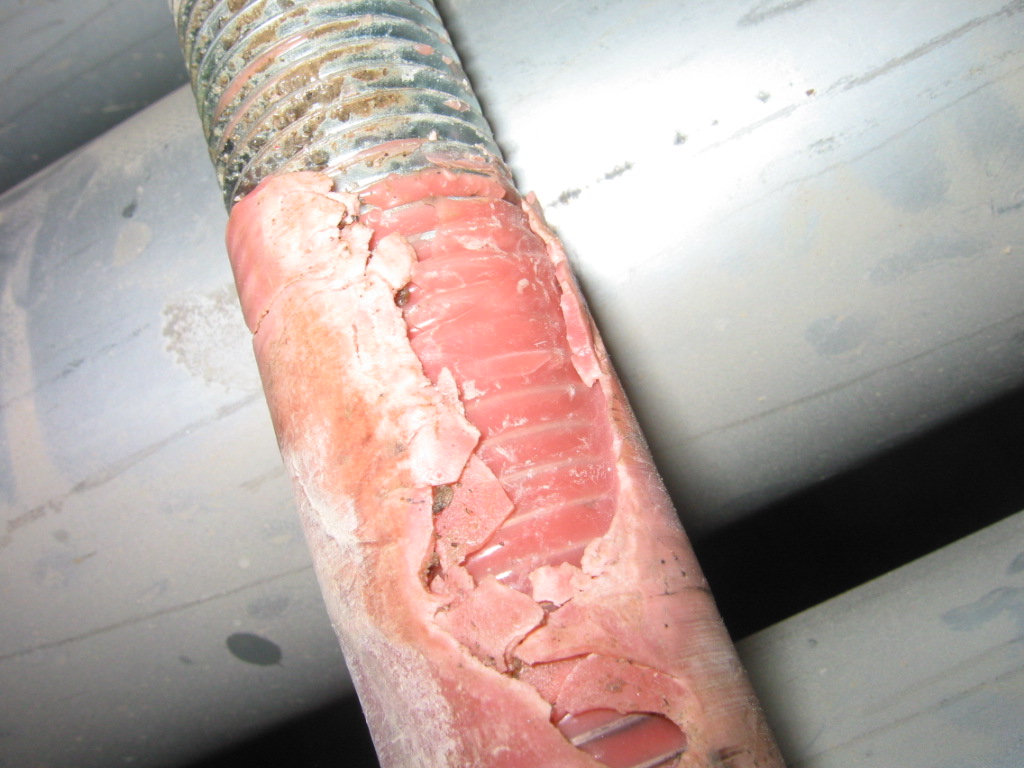

Failed pull test

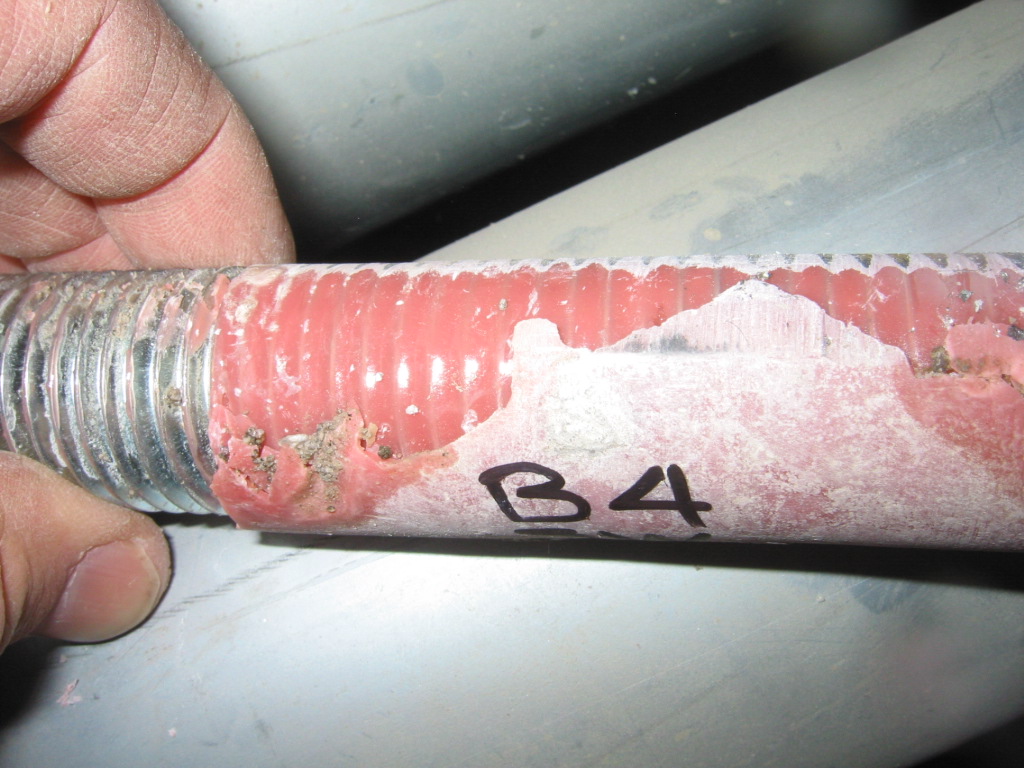

Not enough epoxy was injected to coat threaded rod.

Home View larger version

Reason for failure

After injecting epoxy in to hole, the insertion of the rod pushed it out.

Home View larger version

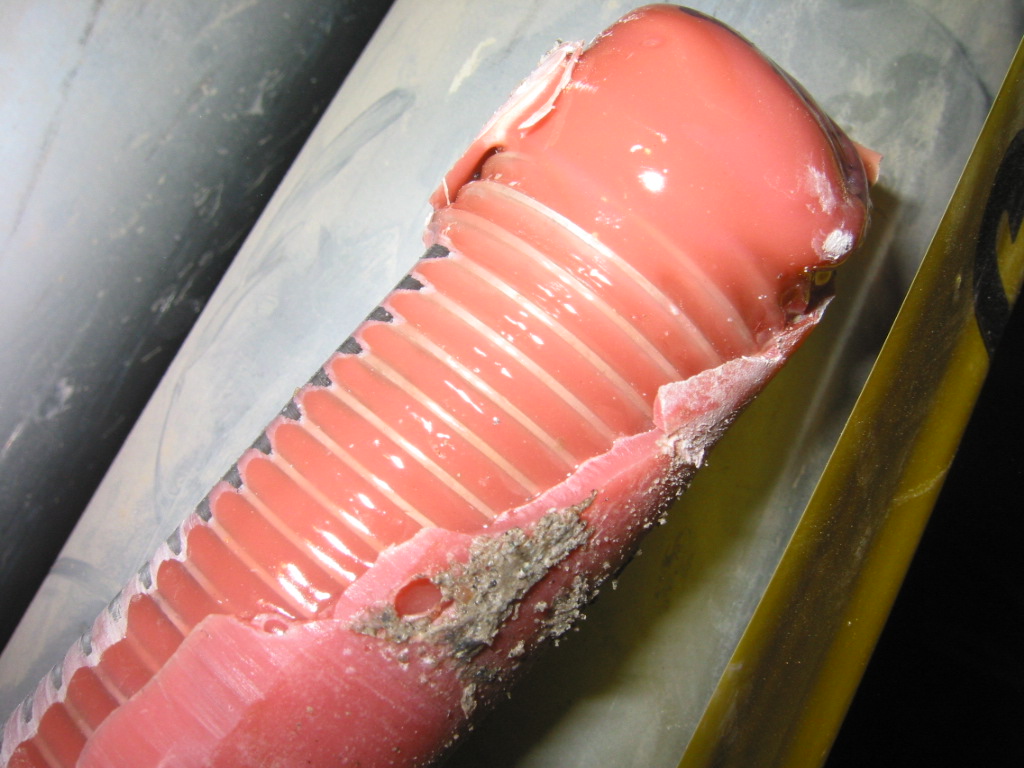

Failed pull test

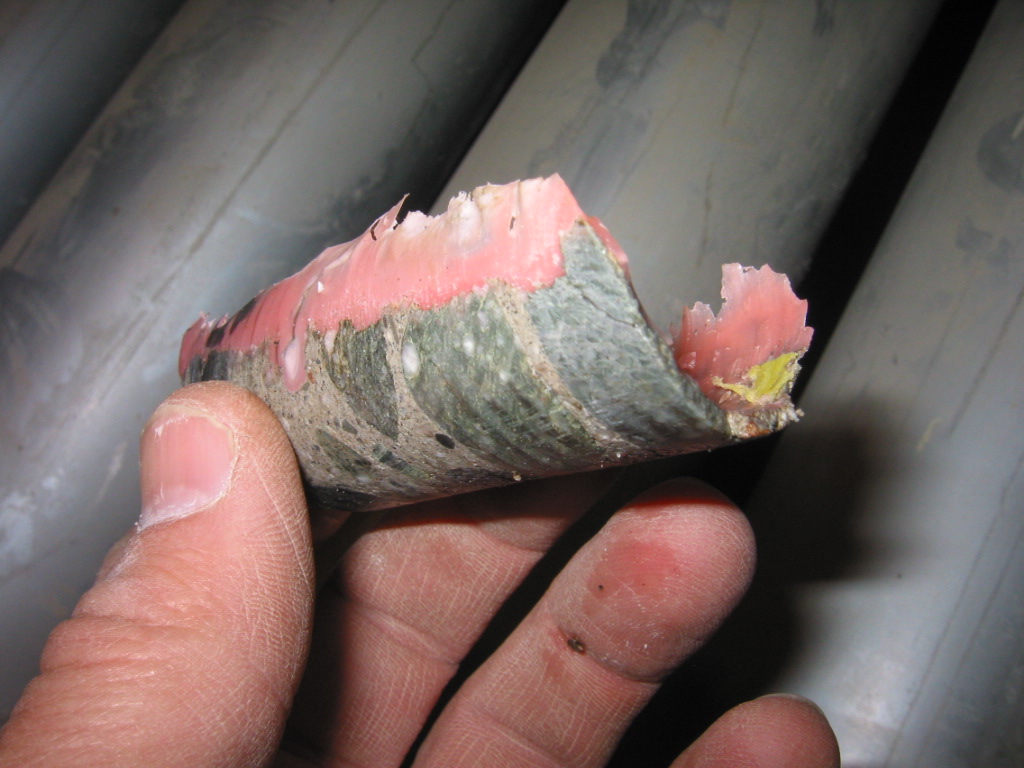

Failures were cored out to examine problem. We knew the epoxy was burping out before the pull tests.

Home View larger version

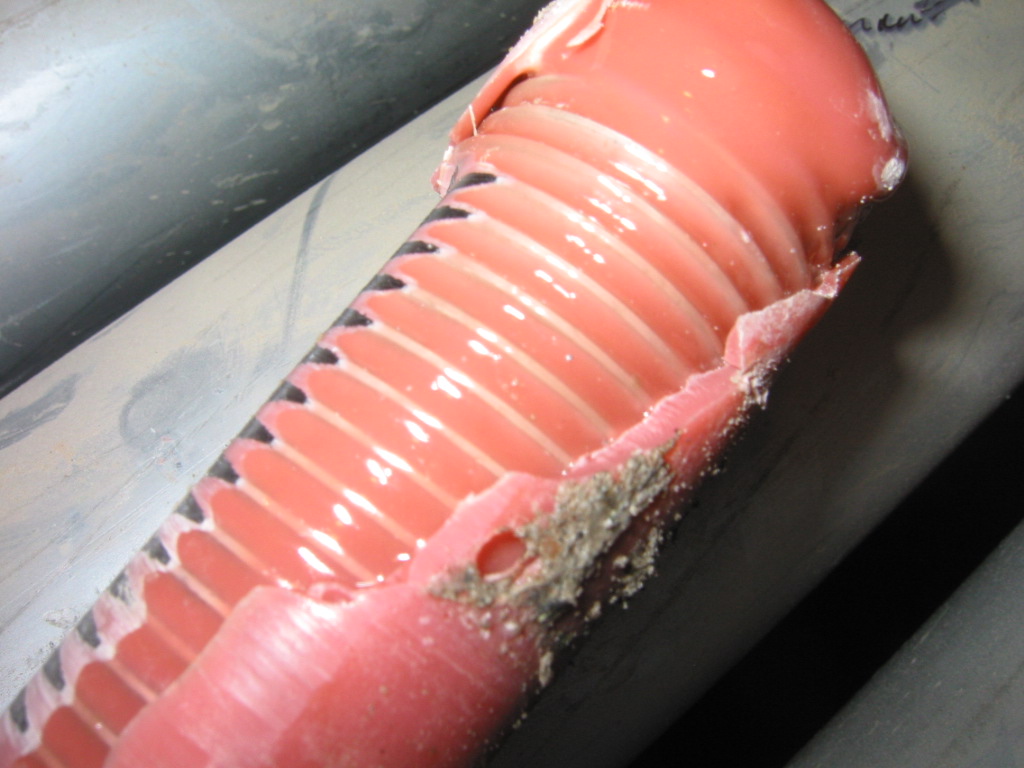

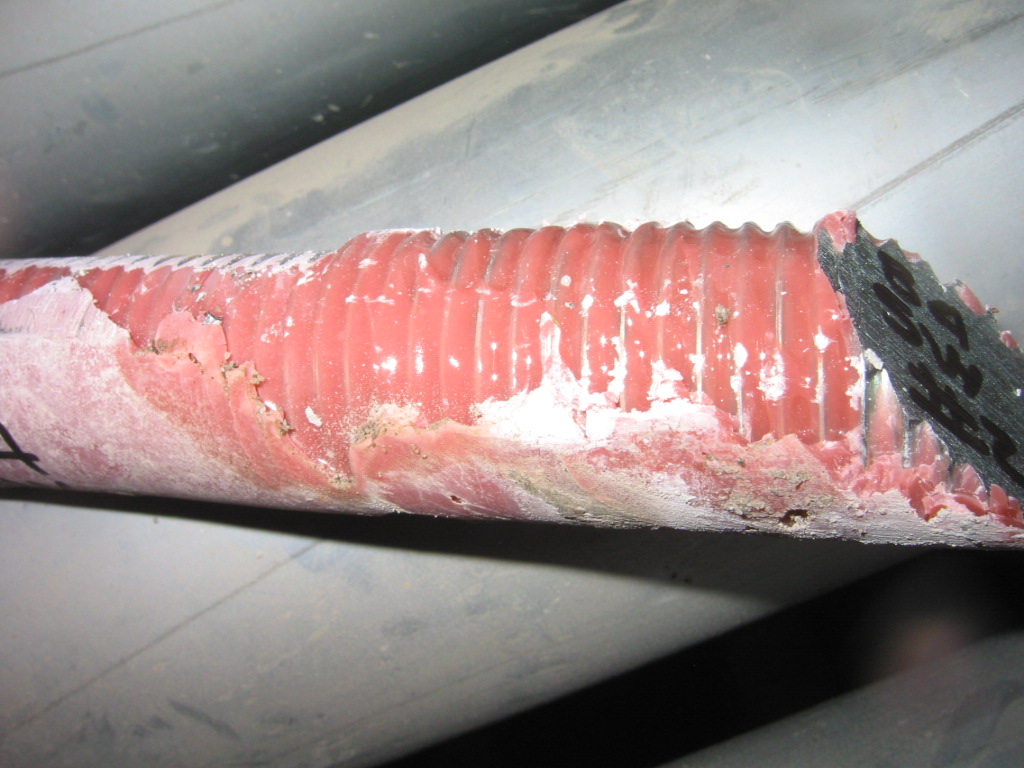

Failed pull test

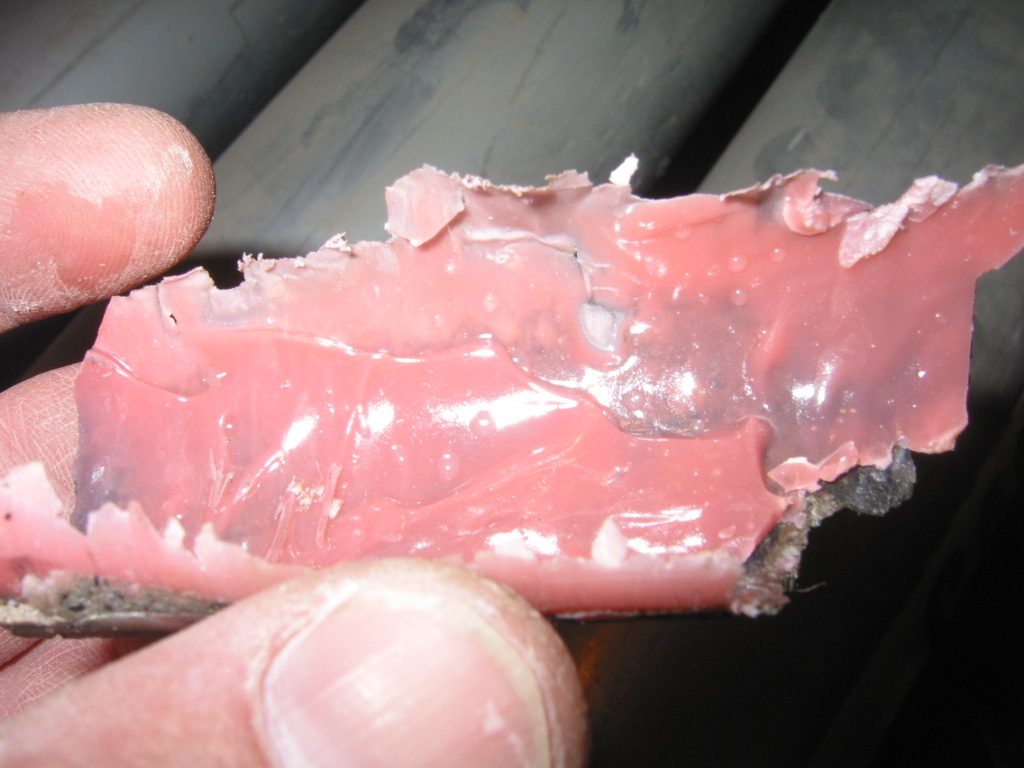

Not enough epoxy stayed in place.

Home View larger version

Failed pull test

Epoxy was forced out as rod was placed.

Home View larger version

Failed pull test

Problem was clear.

Home View larger version

Failed pull test

Each failure occurred for same reason.

Home View larger version

Typical failed condition.

Each failed pull test was cored and examined.

Home View larger version

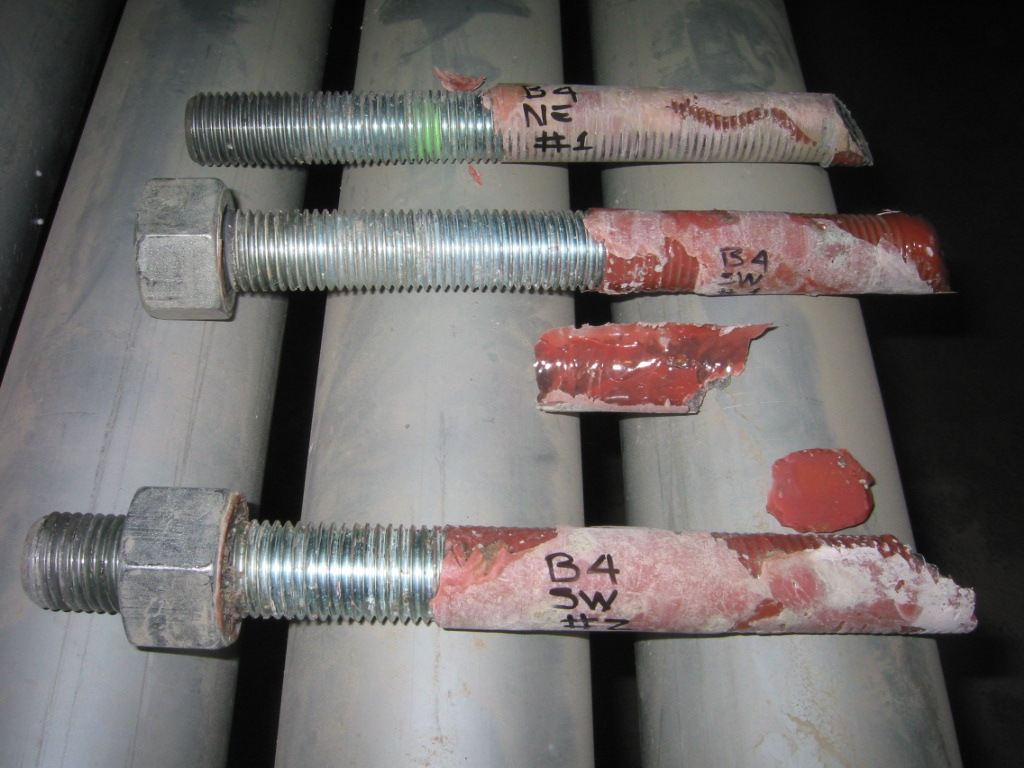

Failures laid out

After weeks of delay, Hilti engineers could not solve problem.

Home View larger version

Solution

I calculated the volume of epoxy required to coat rods.

Home View larger version

Solution

I calculated the volume of epoxy required to coat rods.

Home View larger version

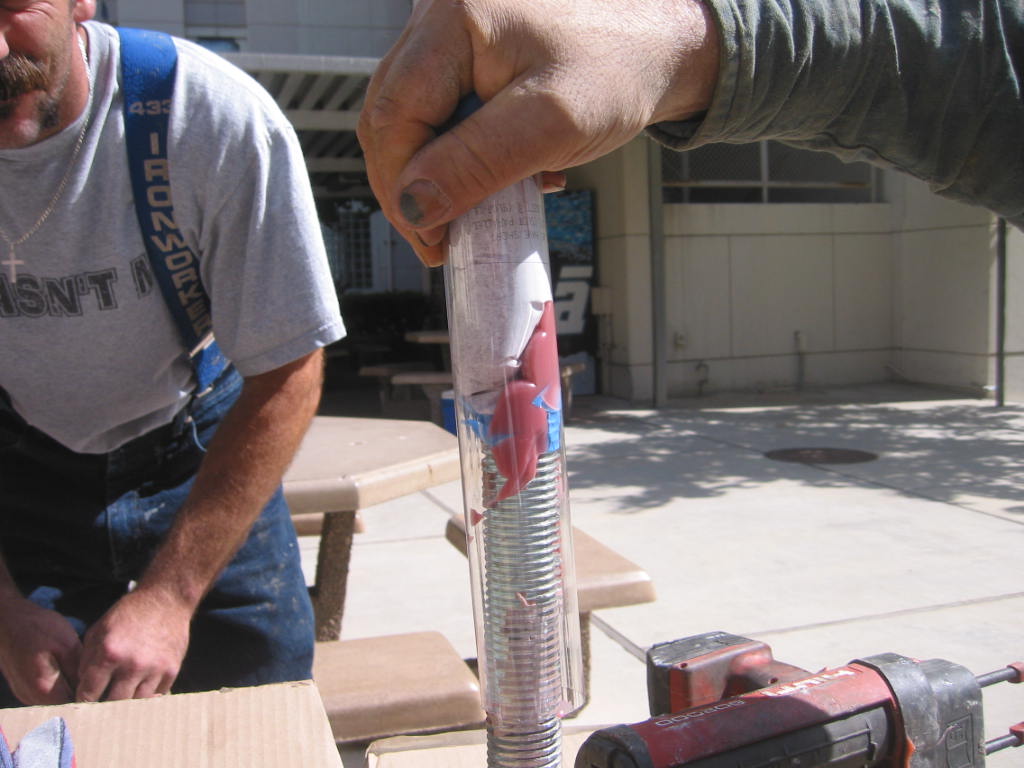

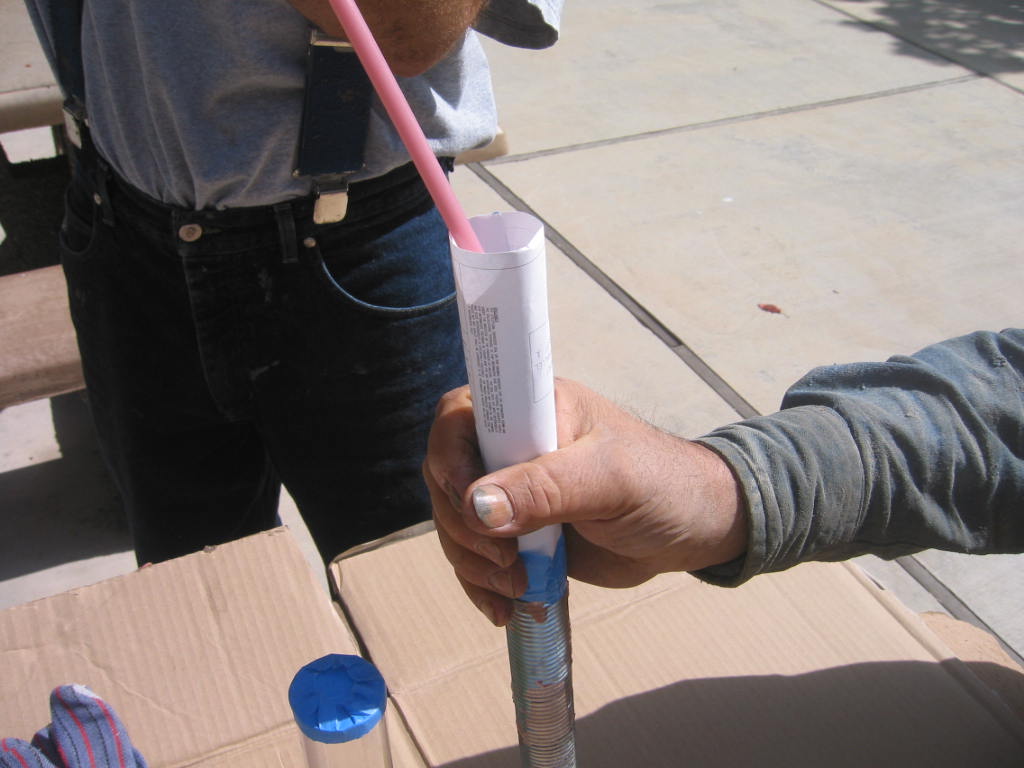

Solution

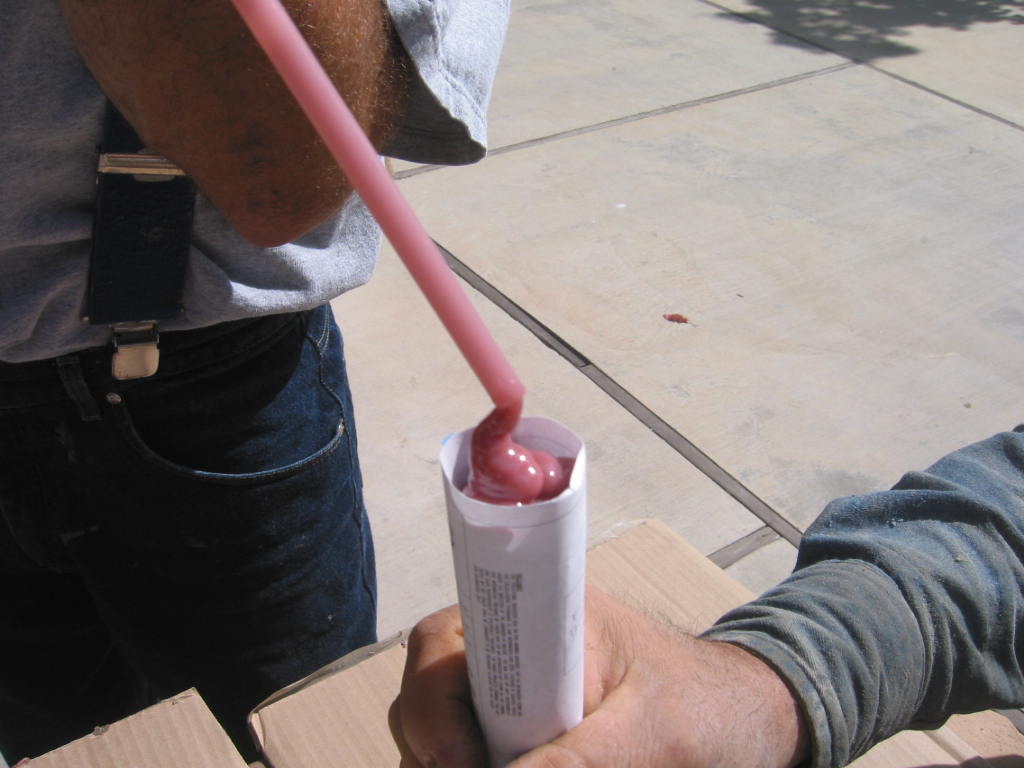

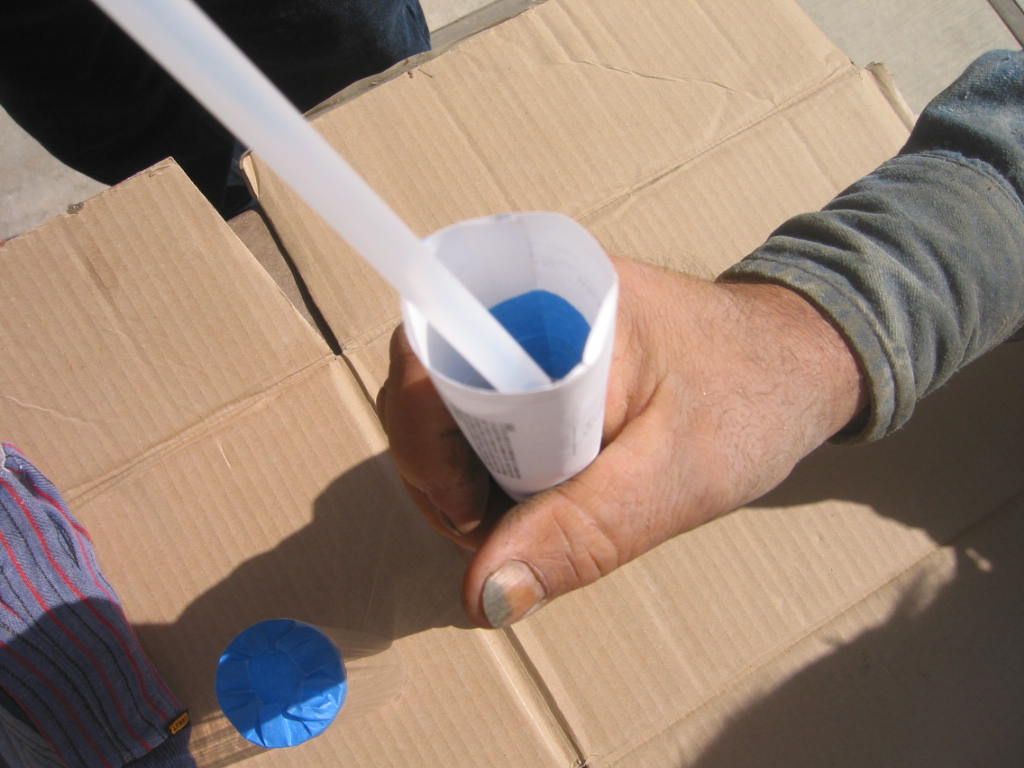

Paper cone holding that volume was attached to rod.

Home View larger version

Solution

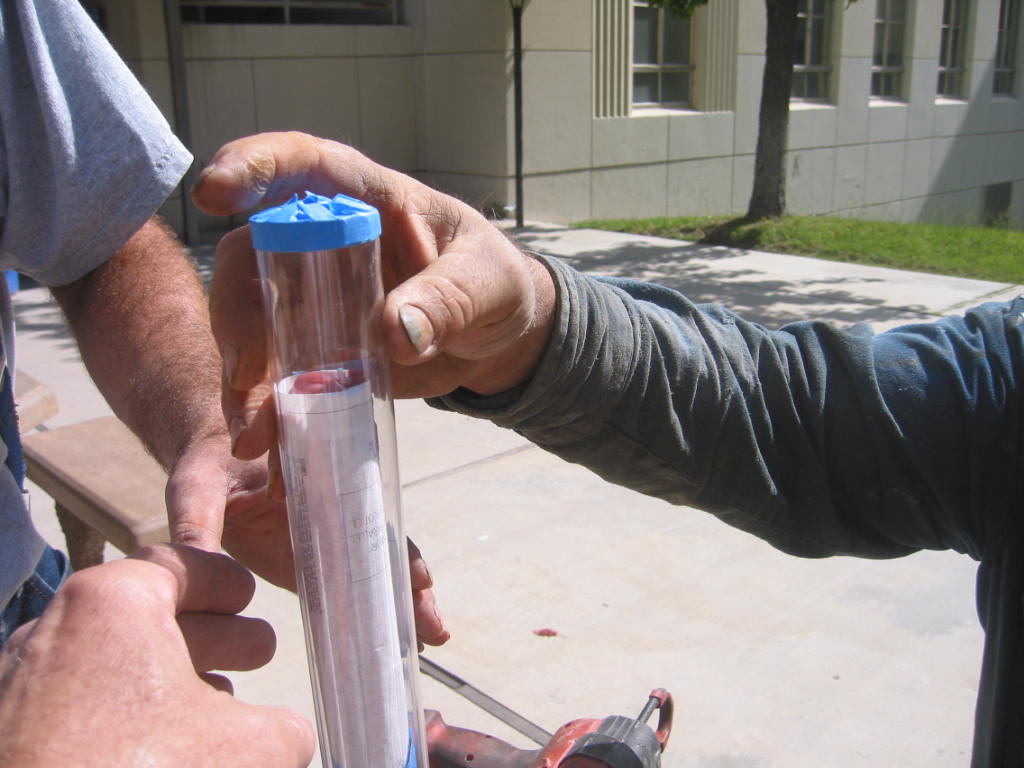

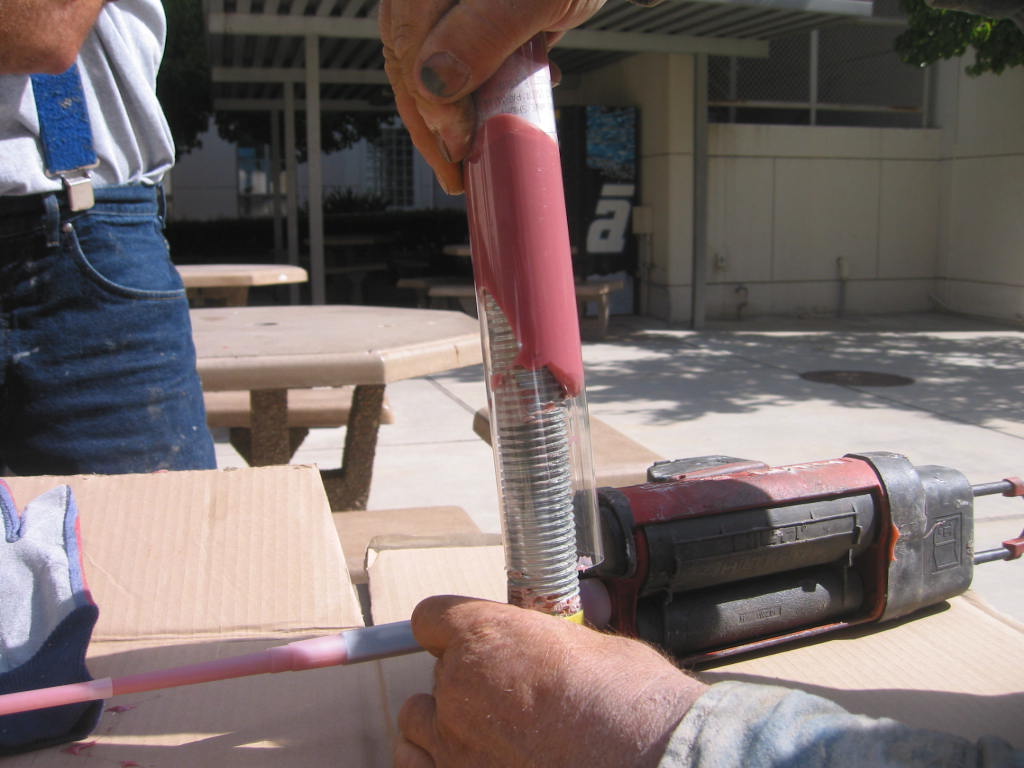

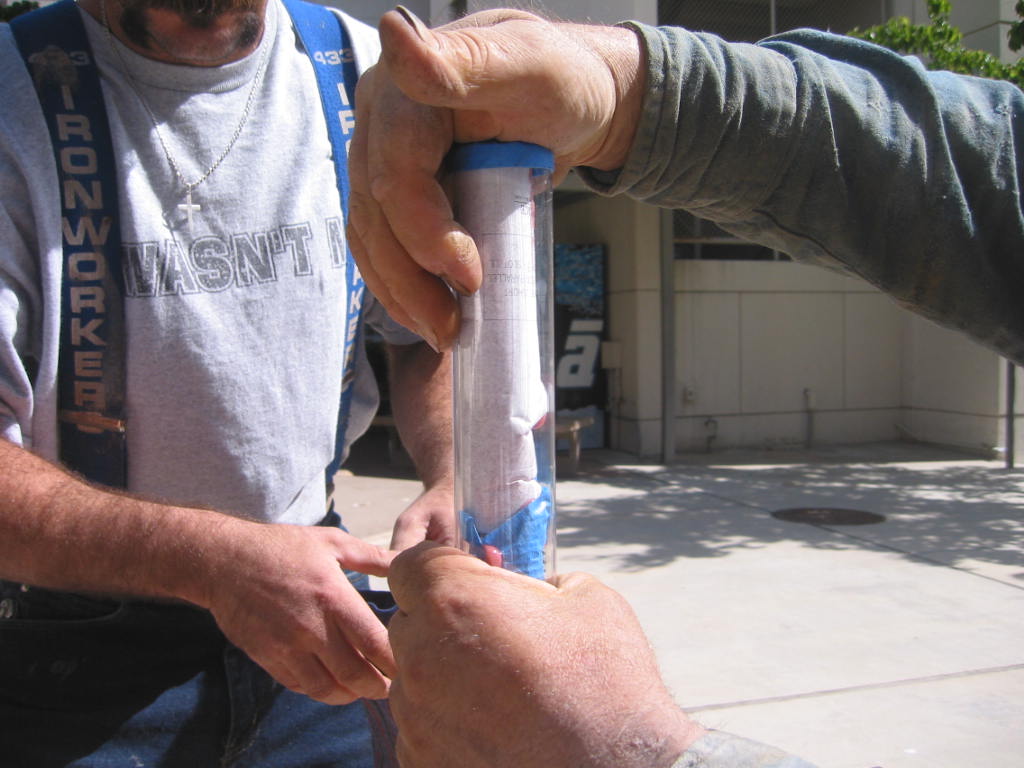

Clear tube emulates bore hole in concrete.

Home View larger version

Solution

Instructions were to insert rod with cone of epoxy into bore hole.

Home View larger version

Solution

As you feel top of hole begin to twist.

Home View larger version

Solution

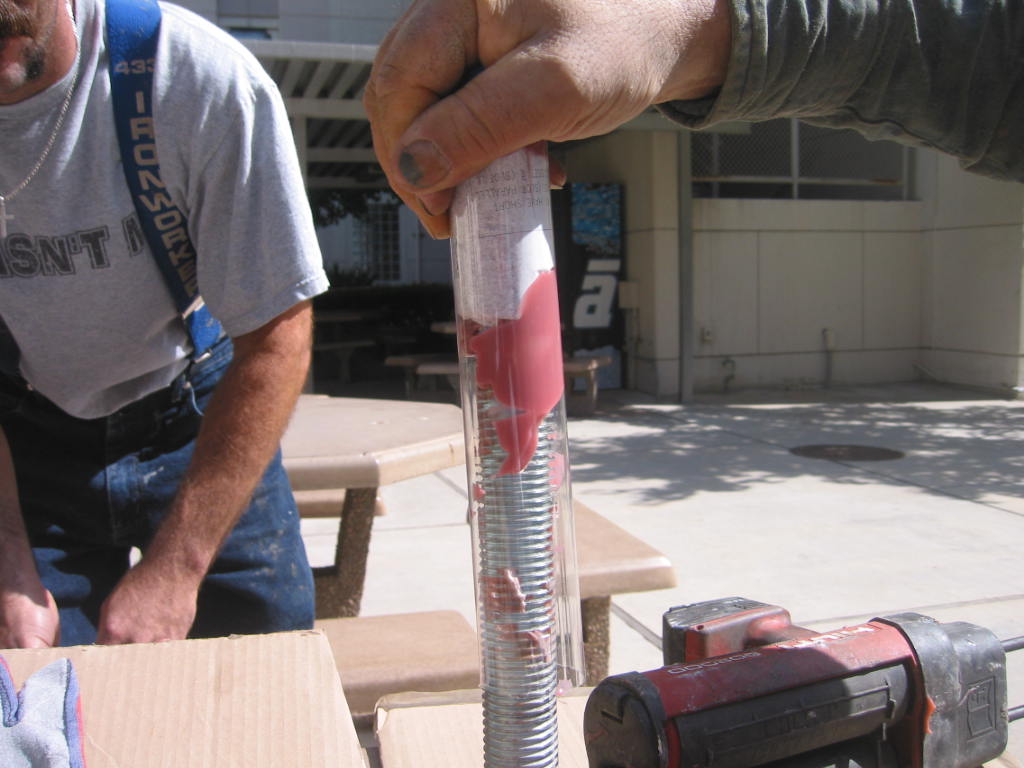

Cone will crush and discharge epoxy.

Home View larger version

Solution

Displacing air as epoxy fills void.

Home View larger version

Solution

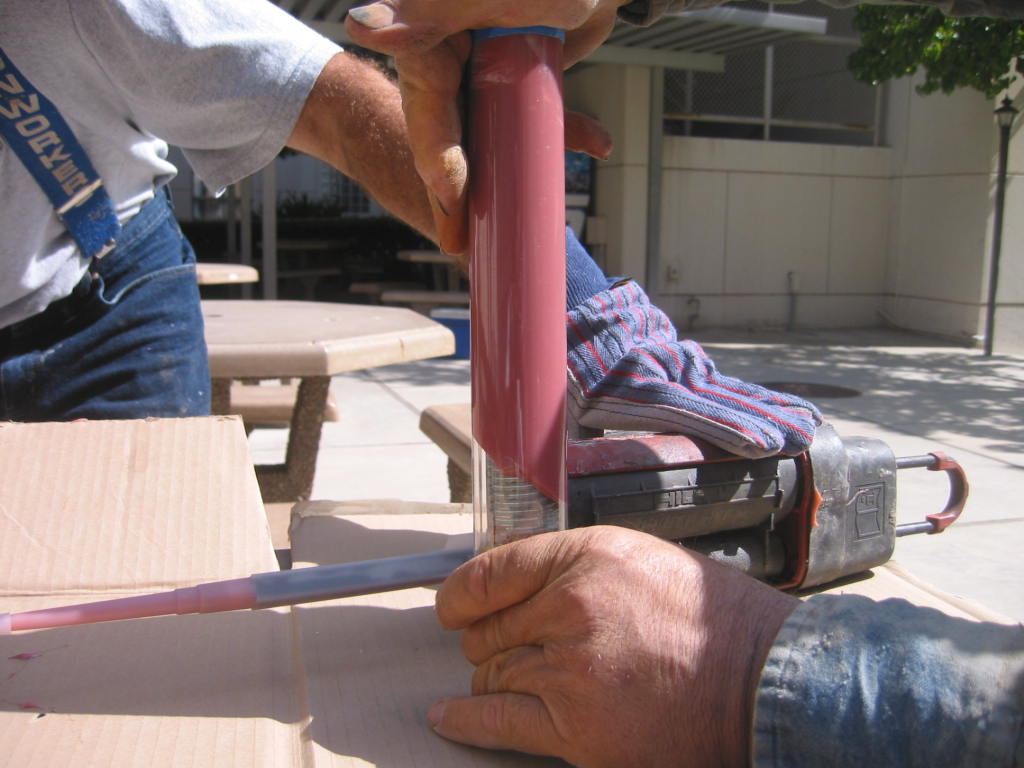

Twisting helps evenly distribute the epoxy.

Home View larger version

Solution

between the rod and concrete hole.

Home View larger version

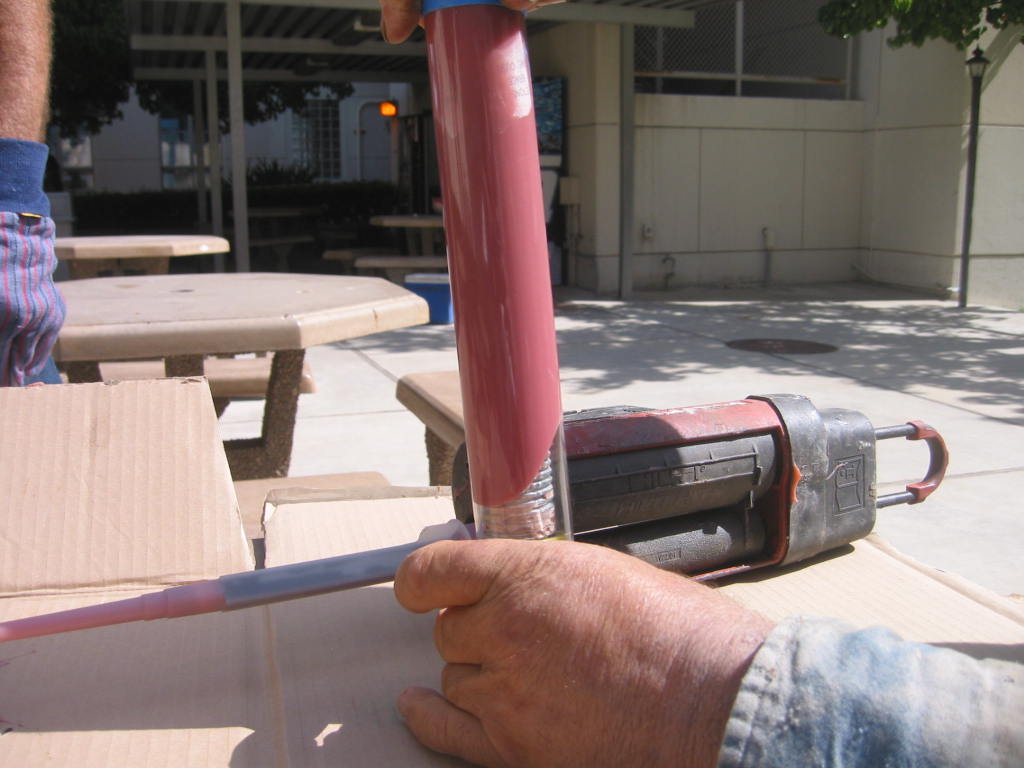

Solution

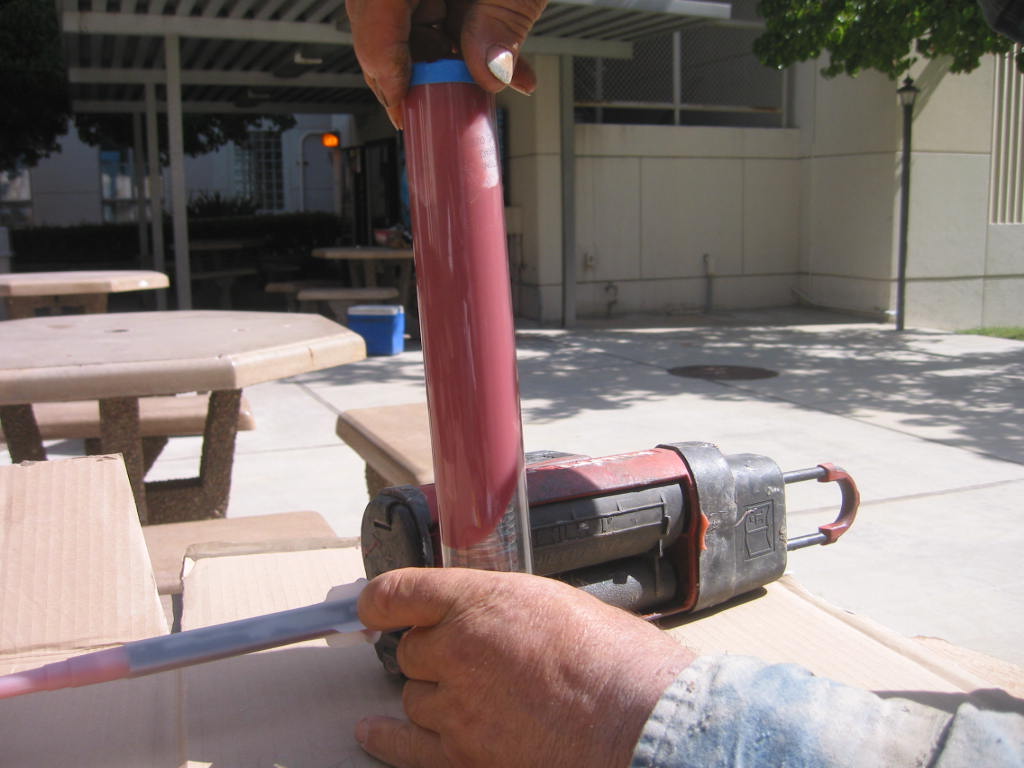

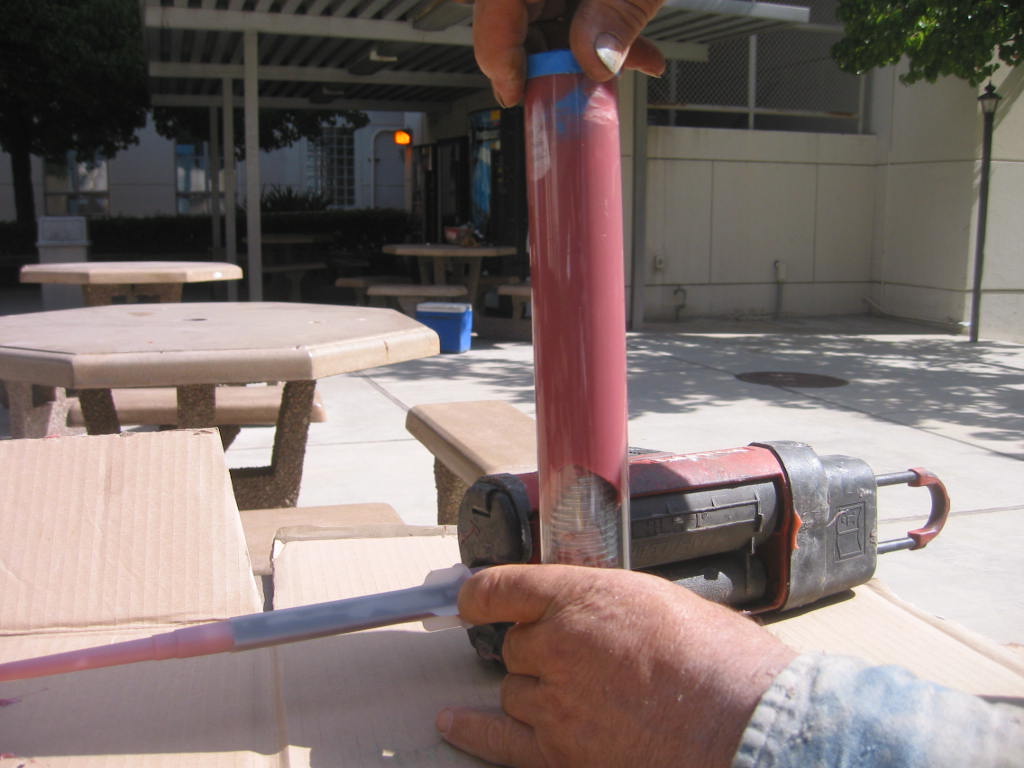

As shown in these examples using the clear tube.

Home View larger version

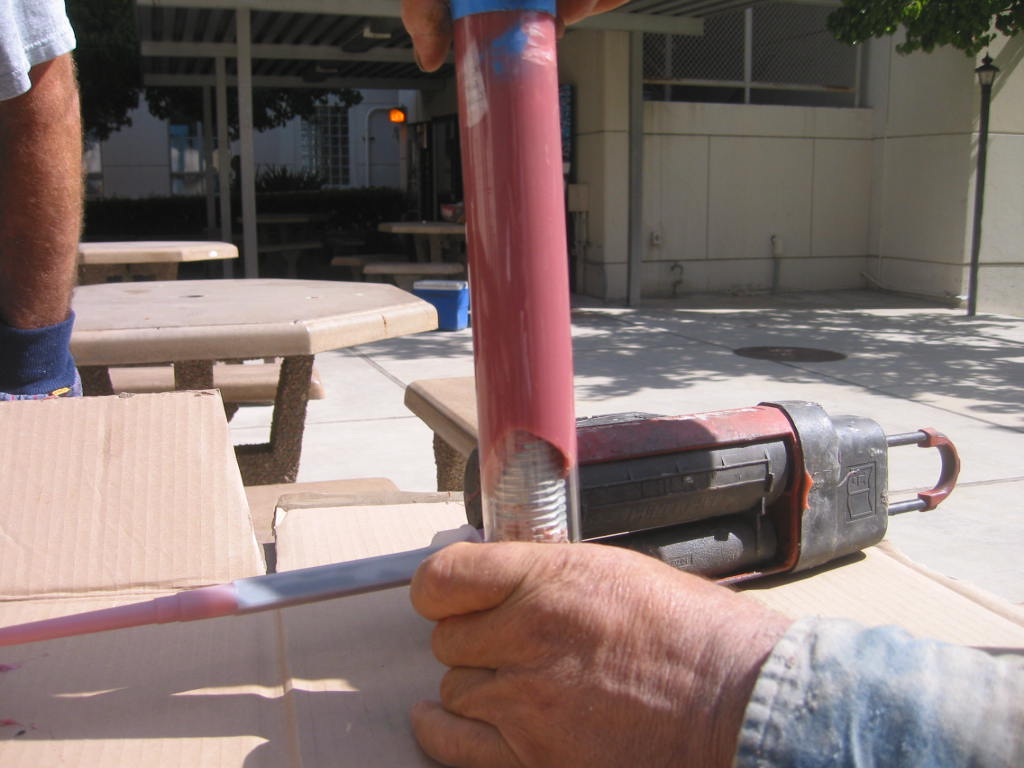

Solution

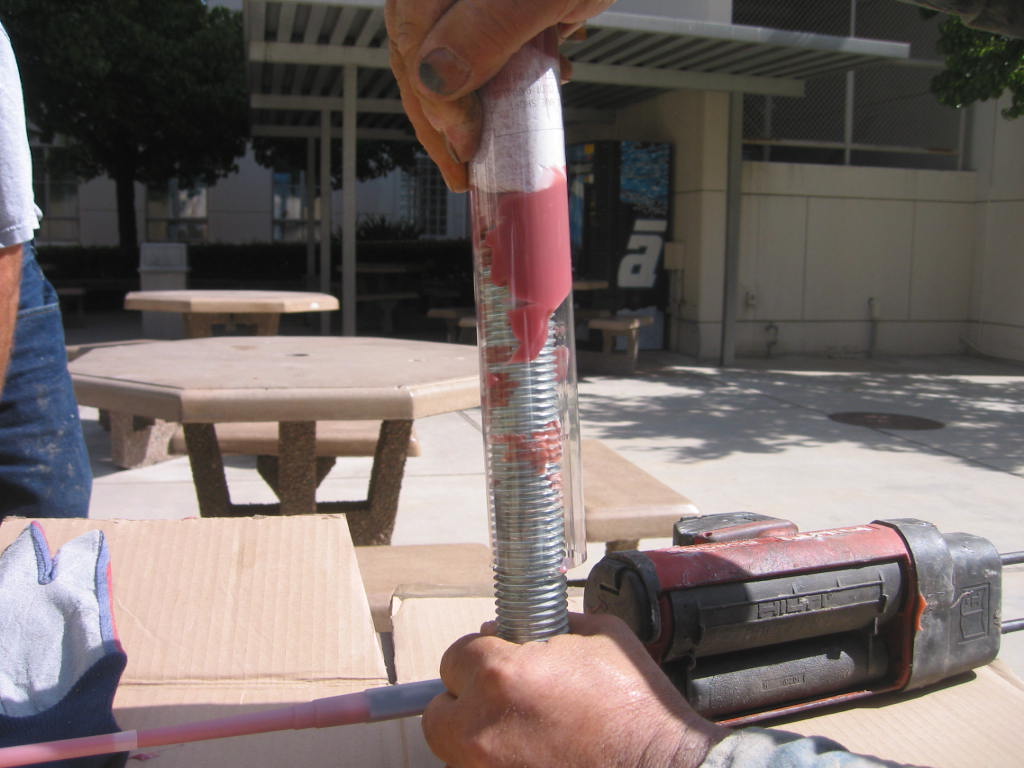

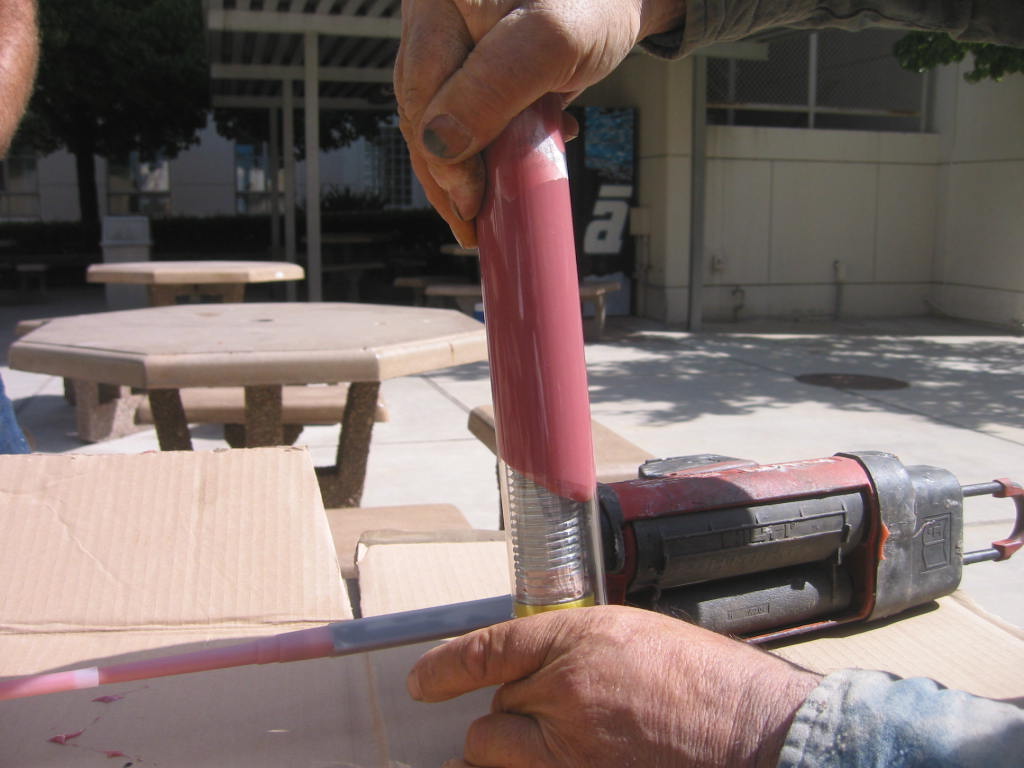

The twisting motion combined with the insertion.

Home View larger version

Solution

Saturates the gap between the rod and cavity.

Home View larger version

Solution

displacing the air evenly.

Home View larger version

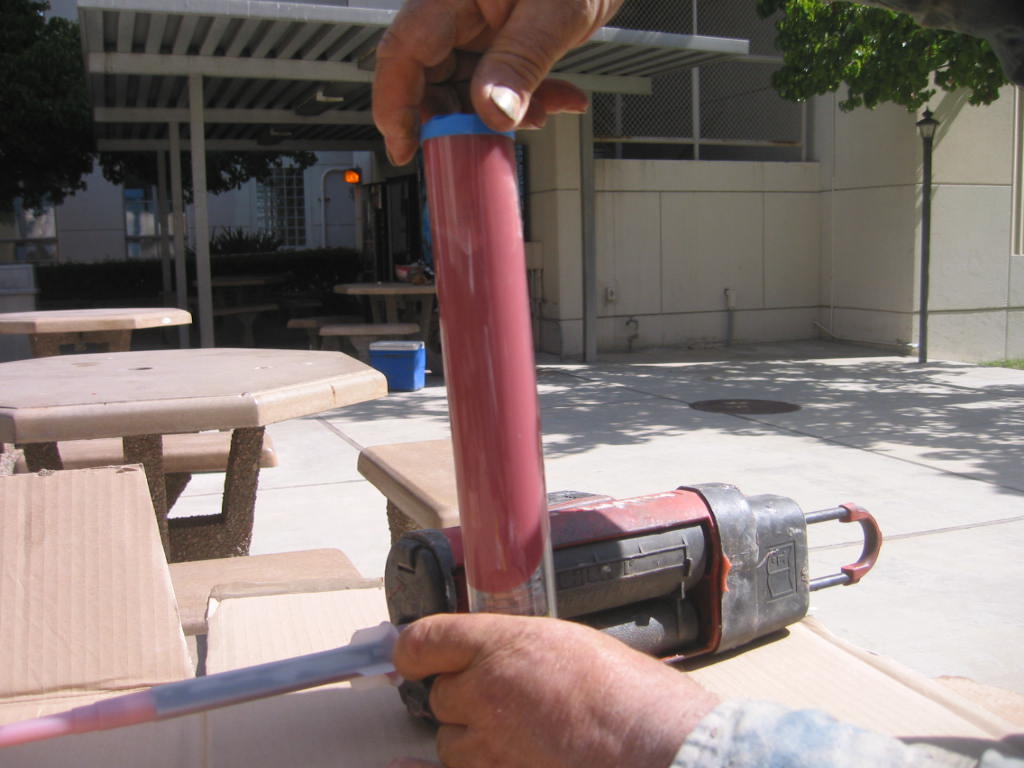

Solution

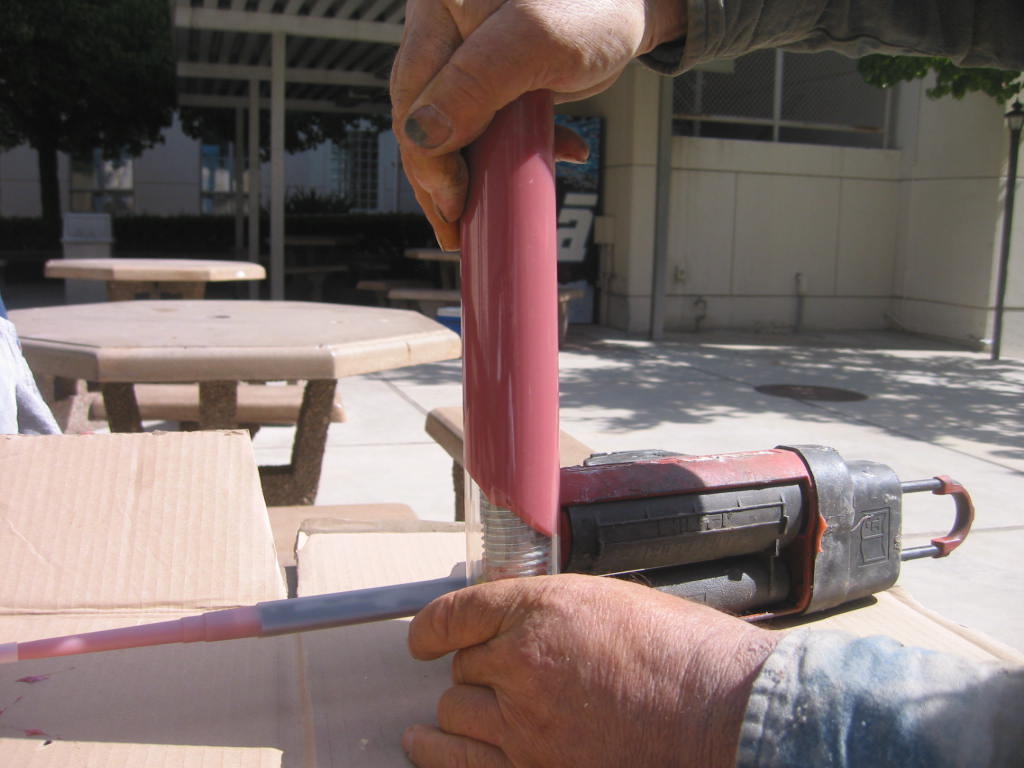

So we have a nice even coating.

Home View larger version

Solution

with no air gaps.

Home View larger version

Solution

or wasted epoxy as the correct volume of epoxy fills the cone.

Home View larger version

Solution

There were no more failures and we used the technique on hundreds of rods.

Home View larger version

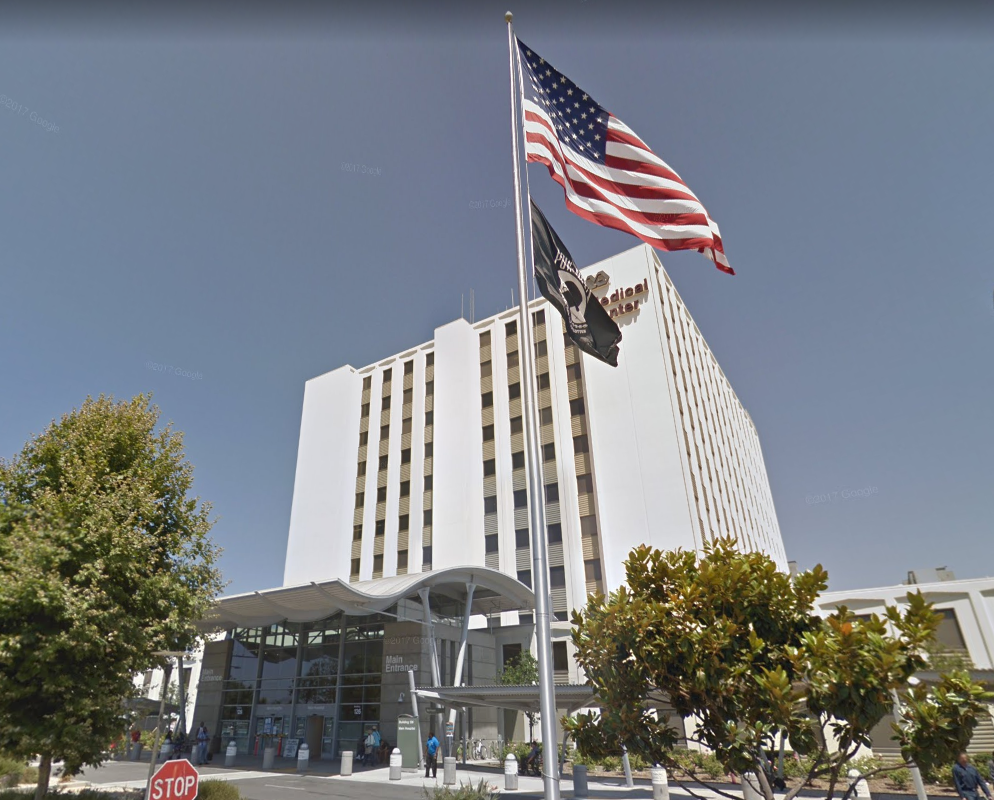

Results

VA Hospital Operational & complient
